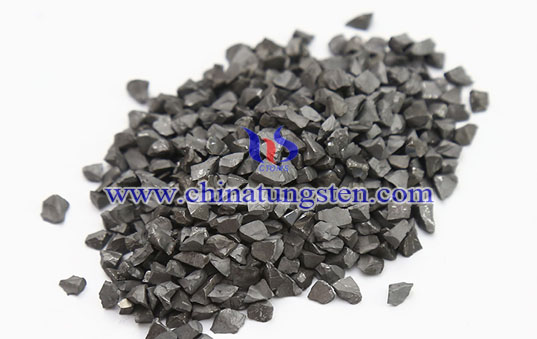

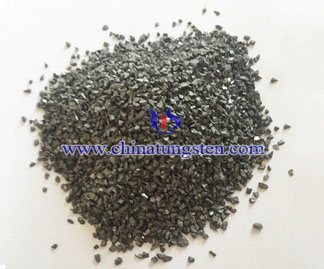

Specifications of Tungsten Carbide Pellet
The following table is the detail specifications of tungsten carbide pellet and the corresponding properties. Special specifications are available for customers' needs. Please do not hesitate to contact us if you have any questions.
| Grade | YQ1 | YQ2 | YQ3 | YQ4 | YQ11 | YQ12 | |
| Compositions(%) | WC Co |
>=85 14~15 |
>=90 9.5~10 |
>=93 6.5~7 |
96.0 0.5 3.5~4 |
>=90.5 8.9~9.5 |
>=91.5 7.7~8.3 |
| Particle Size (mesh) |
10~20 14~20 20~30 30~40 |
10~20 14~20 30~40 |
10~20 14~20 20~30 30~40 |
10~20 14~20 20~30 30~40 |
10~20 14~20 20~30 30~40 |
10~20 14~20 20~30 30~40 |
|
| Density(g/cm3) | 13.9~14.1 | 14.1~14.6 | 14.4~14.8 | 14.6~15.0 | 11.2~12.7 | 12.5~13.2 | |
| Hardness(HV) (at 100g of load)(kg/mm2) |
>=1140 | >=1140 | >=1300 | >=1400 | >=1350 | >=1300 | |
| Porosity (ISO Standard) | A04 B04 C04 | ||||||
| Microstructure | No decarbonization and cobalt pools | ||||||
